Pulsar Axion 2 LRF XG35 Thermal Spotter
*UK Users Only*
Pocket-sized Thermal Spotter with Laser Rangefinder
Pulsar's Axion 2 LRF XG35 thermal spotter sees the next step from Pulsar in their pocket-sized thermal Axion series. It features an excellent F35/1.0 fast aperture lens, greatly improved thermal image quality, extended battery life offering up to 11 hours of power on a single charge, improved algorithms, an impressive 2.4/5GHz WiFi range, and, vitally, it features a laser rangefinder. (range of up to 1000m with an accuracy of ± 1 m).
It is also compatible with Pulsar's stream vision 2 software.
This Pulsar thermal spotter offers more clarity (through more pixels with a finer pixel pitch), a better AMOLED screen, more zoom, and a bigger detection range than the Axion 2 LRF XQ35, essentially it is the XG sensor versus the XQ sensor.
Find our Pulsar Comparison Tool here
Product details
Key Features
- Compact and lightweight
- Functional and ergonomic design
- 8-colour display palette
- 3 calibration modes: Manual, Semi-Automatic, Automatic
- Detection range up to 1300 m/1422 yds
- Smooth digital zoom 2-8x
- Three levels of sensitivity enhancement: Normal, High, Ultra
- Integrated laser rangefinder
- Display-Off function
- Defective pixel repair
- Updatable firmware
- Wide operating temperature range (-25°С to +40°С / -13°F to +104°F)
- Fully waterproof (IPX7 rated)
- Tripod mount
Video/Audio Recording
- Built-in video and sound recorder
- Integration with iOS and Android devices
- Wi-Fi remote control and viewing using a smartphone
- Storing photos and videos in Cloud when using the Stream Vision 2 App

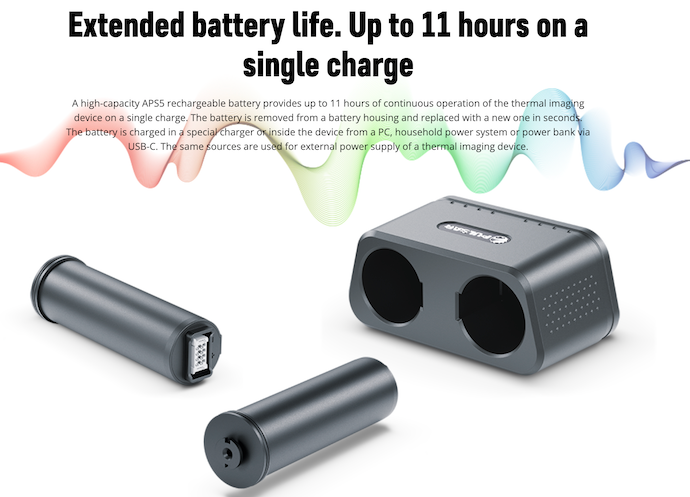

Battery Pack
- Quick Change Li-Ion Battery Pack APS 5
- Charging from USB Power Bank
- Quick-Charge power delivery
Specifications
| Microbolometer | |
| Type | uncooled |
| Resolution, Pixels | 640x480 |
| Pixel Pitch, µm | 12 |
| NETD, mK | < 40 |
| Frame Rate, Hz | 50 |
| Optical Characteristics | |
| Optical Magnification, x | 2.5 |
| Smooth Digital Zoom | 2.5-20 |
| Digital Zoom, x | x1, x2, x4, x8 |
| Lens Focus, mm | 35 |
| Relative Aperture, D/f' | 1.0 |
| Minimum Focus Distance, m/y | 5 / 5.5 |
| Eye Relief Diameter, mm/inch | 4 / 0.16 |
| Angular Field of View (Horizontal x Vertical), degree | 12.5х9.4 |
| Linear Field of View, m at 100 m | 21.9 |
| Eyepiece Focus Range, Dioptre | +4 / -5 |
| Detection Distance for Deer-Sized Objects, m/y | 1750 / 1914 |
| Display | |
| Type | AMOLED |
| Resolution, Pixels | 1024x768 |
| Operational Characteristics | |
| Power Supply, V | 3 - 4.2 |
| Battery Type/Capacity/Nominal Output Voltage | APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V |
| External Power Supply | 5 V, 9 V (USB Type-C) |
| Battery Run Time at t=22°C, hours* | 7 |
| Degree of Protection, IP Code (IEC60529) | IPX7 |
| Operating Temperature Range, °C / °F | -25 … +40 / -13 – +104 |
| Dimensions, mm/inch | 152x74x75 / 5.98x2.91x2.95 |
| Weight (with battery), kg/oz | 0.47 / 16.58 |
| Video Recorder | |
| Photo/Video Resolution, Pixels | 1024x768 |
| Video/Photo Format | .mp4 / .jpg |
| Built-in Memory | 16 GB |
| Wi-Fi Channel | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Characteristics of the Rangefinder | |
| Wavelength, nm | 905 |
| Measurement Range, m/y*** | 1000/1094 |
| Measurement Accuracy, m | 1 |
