Pulsar Axion XQ30 Pro Thermal Spotter
*UK Users Only*
Finance options available

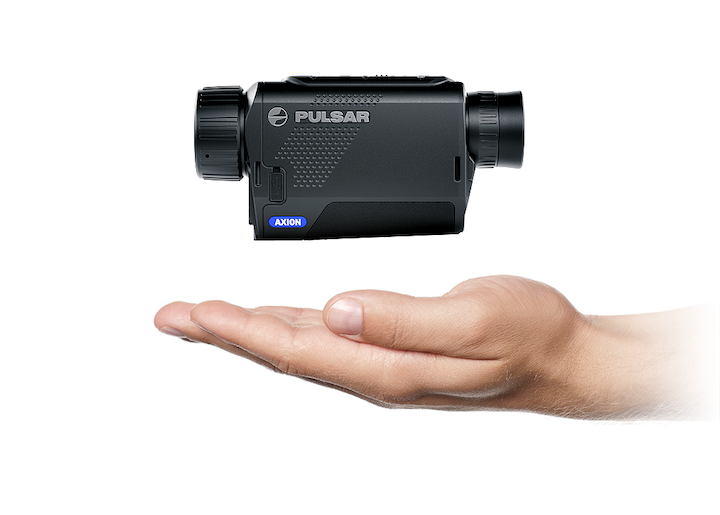

Learn morePocket-Size Thermal Spotter

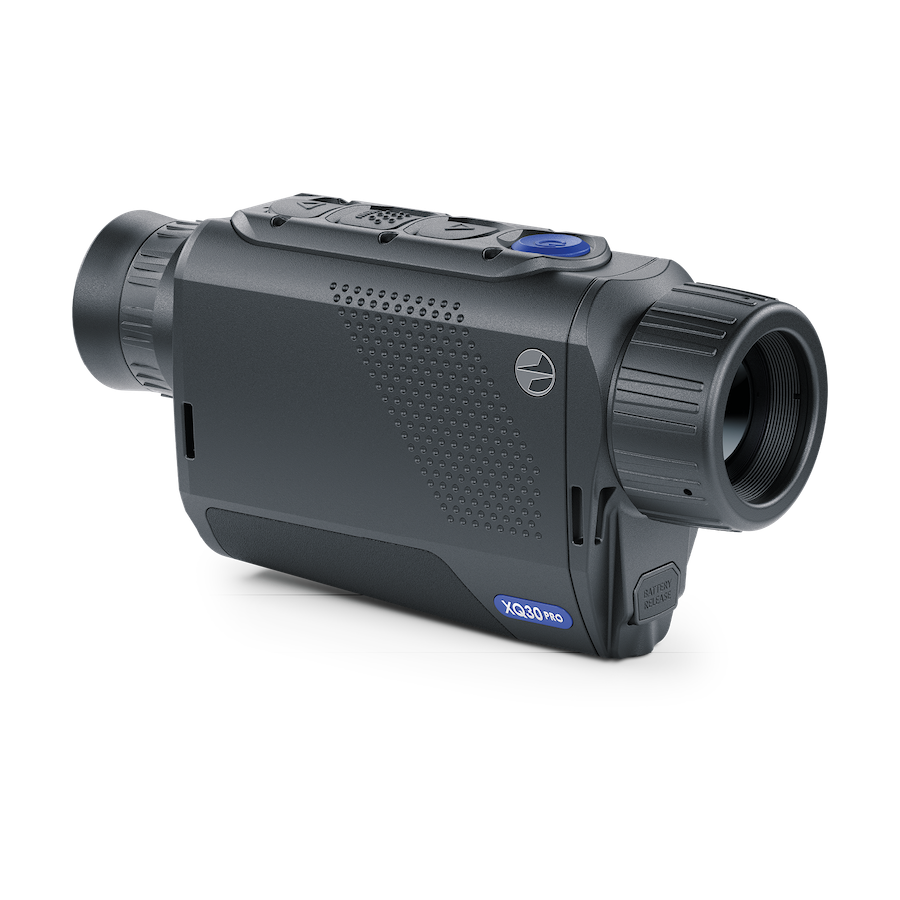

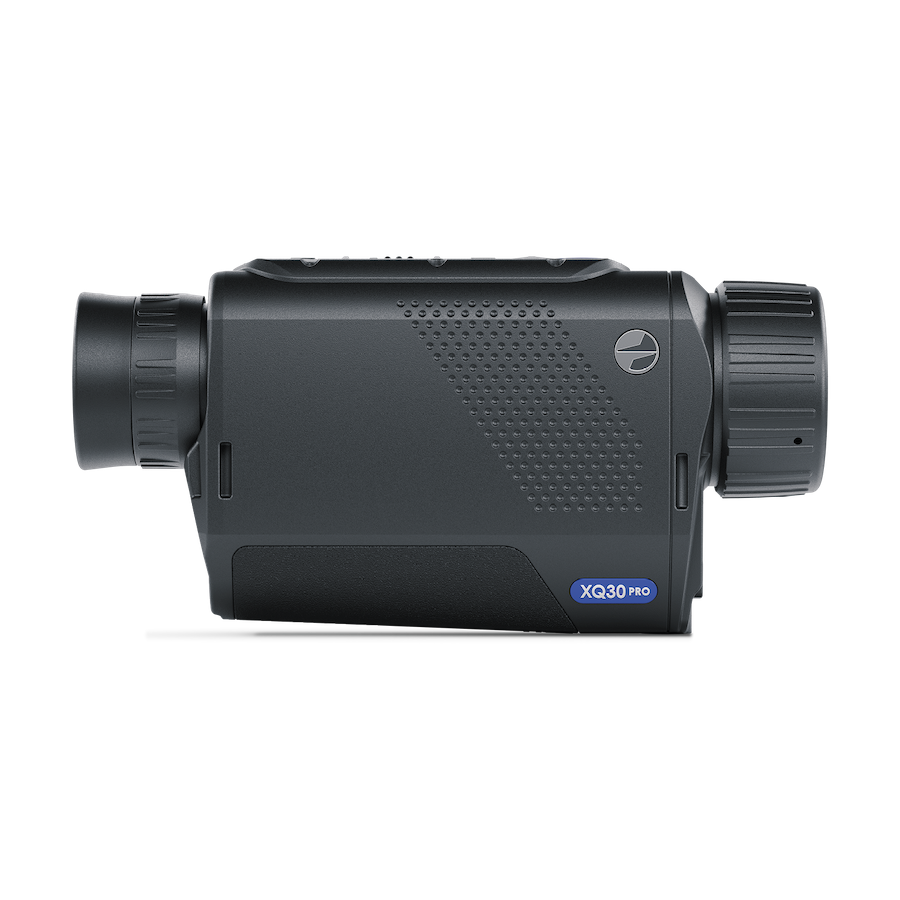

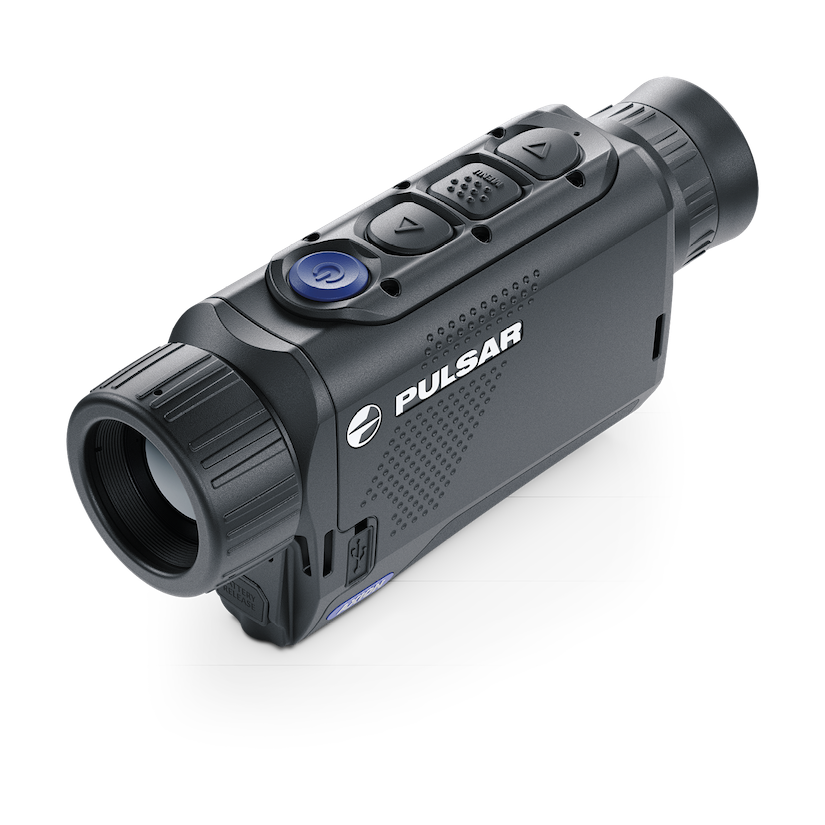

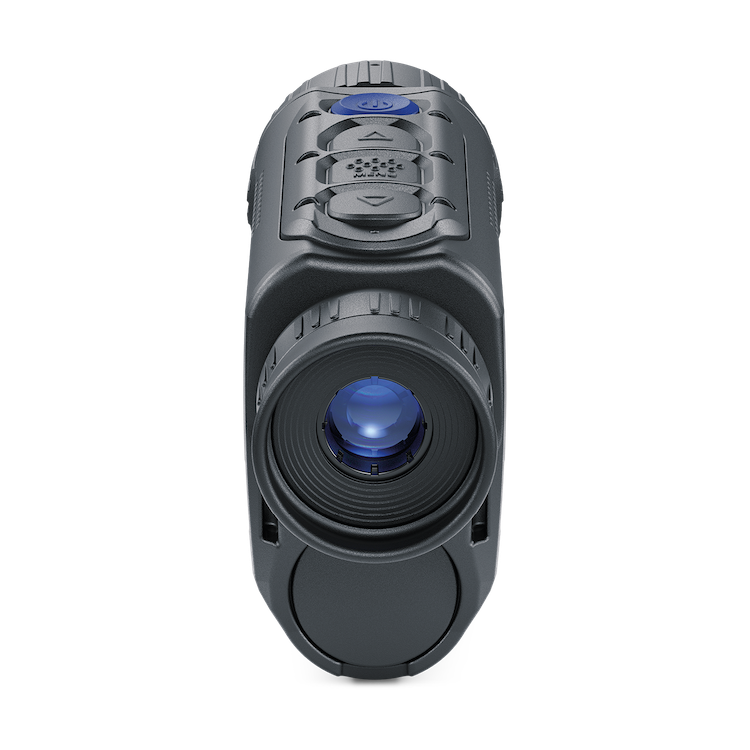

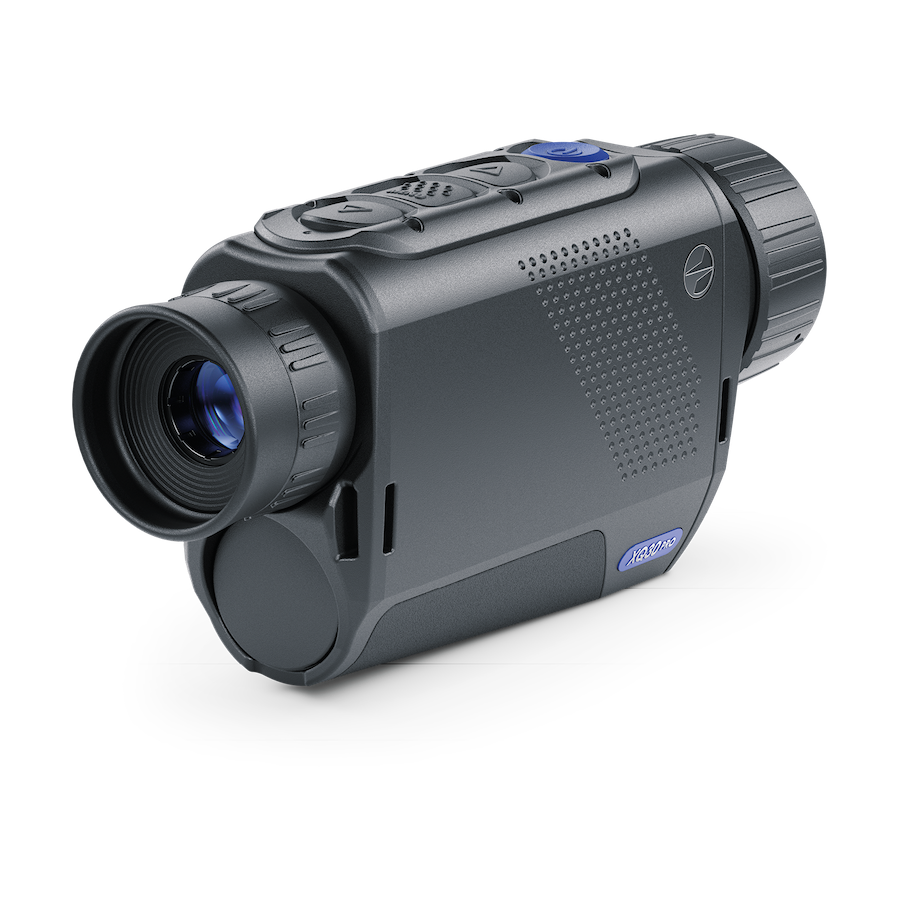

The Axion XQ30 Pro thermal imaging monocular is Pulsar's latest affordable device, succeeding the popular Axion XM30F. It maintains the same price but features an upgraded 384×288, 17µm, <25mK NETD thermal sensor, enabling the detection of small heat signatures up to 850m away.

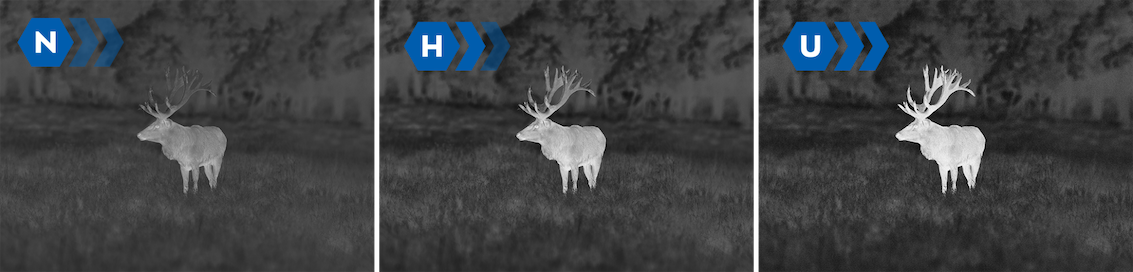

The device offers three sensitivity levels with enhanced filtration algorithms and adjustable brightness and contrast for improved object and environment rendering in various conditions. It boasts a high-contrast 600×400 AMOLED display for detailed and sharp thermal imagery, even in cold weather.
The quick-change APS3 rechargeable battery provides up to 7 hours of observation and supports fast USB type-C charging. The Axion XQ30 Pro also offers eight colour palettes for optimized viewing in different scenarios, including White Hot, Black Hot, and Red Hot for detection, Rainbow and Ultramarine for identification, and Red Monochrome, Sepia, and Violet for prolonged night observation.
For more information and to see a full list of technical details, click here.
Find our Pulsar Comparison Tool here
Product details
Specifications
| Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) |
| Objective lens | F30/1.2 |
| Magnification, x | 2 - 8 (x4 zoom) |
| Magnification in monocular mode / attachment mode, x | - |
| Field of view (HxV), degrees / m@100m | 13.3x10 / 23.3х17.5 |
| Detection range, m | 850 |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 17 |
| NETD, mK | <25 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F30/1.2 |
| Magnification, x | 2 - 8 |
| Magnification in monocular mode / attachment mode, x | - |
| Field of view (HxV), degrees / m @ 100 m | 13.3 |
| Eye relief, mm | - |
| Recommended magnification of the day scope, x | - |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 640x400 |
| Range Performance | |
| Detection range, m | 1050 |
| Laser Rangefinder | |
| Safety class for laser equipment according to IEC 60825-1:2014 | - |
| Wavelength, nm | - |
| Max. measuring range, m | - |
| Measurement accuracy, m | - |
| Video Recorder | |
| Video / photo resolution, pixel | 528х400 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory, GB | 16 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Bluetooth | |
| Wireless Protocol | - |
| Wireless Standard | - |
| Frequency, GHz | - |
| Environmental Characteristics | |
| Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
| Operating temperature range, °С | -25 – +40 |
| Connections and Compatibilities | |
| Compatible mounts | tripods |
| Mount, type | 1/4" |
| Remote control | - |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output voltage, V | 4.2-3.0 |
| Battery type | Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h) |
| Capacity, mAh | 3200 |
| Operating time on battery pack (at t=22°C), h * | 8h |
| External power supply, V | 5V (USB) |
| Weight & Size | |
| Body material | Magnesium alloy |
| Dimensions, mm | 144x41x69 |
| Weight, kg | 0.3 (with battery) |
| Trade Data | |
| SKU (Model #) | 77506 |
| Status | - |
