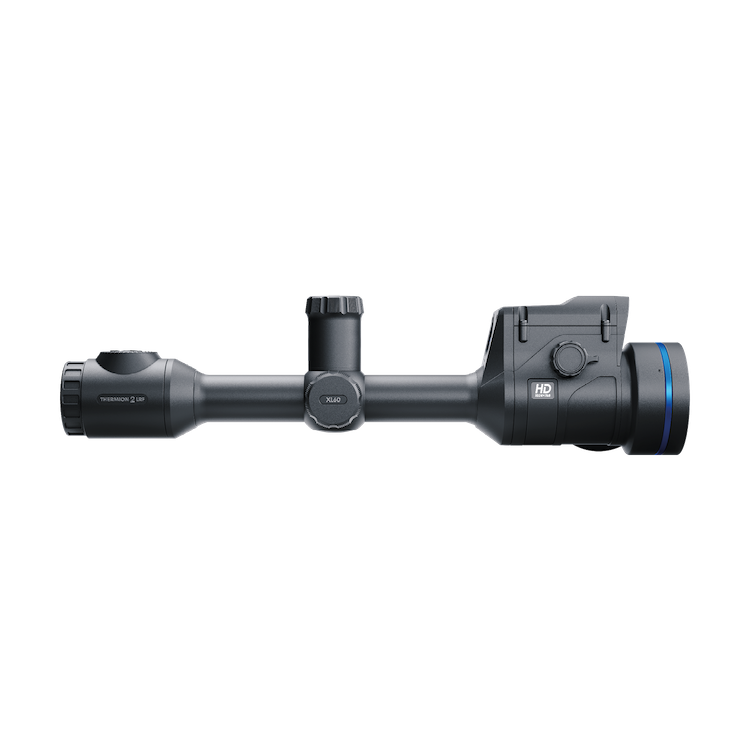

Pulsar Thermion 2 LRF XL60 Thermal Scope
*UK Users Only*
Pulsar Thermion 60mm - Long Range
The groundbreaking Thermion 2 LRF XL60 thermal scope, the first thermal imaging riflescope in Pulsar's lineup equipped with a cutting-edge 1024x768 HD thermal sensor and 60mm lens. This advancement from the Pulsar Thermion 2 LRF XP50 ensures wide-angle viewing on an enlarged display with unparalleled image clarity, spanning the entire 2.5x-20x magnification spectrum. With a detection range extending up to 2800 meters (LRF measures up to 800m) and a generous 11.7° field of view, it's the ultimate selection for extended-range shooting. Pulsar thermal imaging has established a new standard in premium thermal optics with thecision and detail.
The 60mm Thermion scopes also offer reduced click values, enabling more precise zeroing.
Key Features:
- Pulsar best thermal sensor: 1024x768, 12µm, <35mK NETD European-made Lynred thermal sensor
- HD AMOLED 2560x2560 larger display
- Built-in laser rangefinder (LRF) compatible with Stream Vision Ballistics
- Unique, wider 2.5x-20x magnification range
- Compatible with Stream Vision 2 App
- 7 Hours battery life
Find our Pulsar Comparison Tool here
Product details
Specifications
| Main specifications | |
| Sensor | @ 12 µm 1024x768 |
| Objective lens | F60/1.1 |
| Magnification, x | 2.5 - 20 |
| FOV (HxV), degrees | 11.7 |
| FOV (HxV), m@100m | 20.5 |
| Detection range | 2800 m |
| Reticle | |
| Click range, H/V, mm at 100m | 3200/3200 |
| Click value, H/V, mm at 100m | 16 mm – 2.5х, 8 mm – 5х, 4 mm – 10х, 2 mm – 20х |
| Number of preloaded reticles | 10 |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 1024x768 |
| Pixel pitch, µm | 12 |
| Sensor NETD, mK | < 35 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F60/1.1 |
| Magnification, x | 2.5 - 20 |
| FOV (HxV), degrees | 11.7 |
| FOV (HxV), m@100m | 20.5 |
| Eye relief, mm | 65 |
| Display | |
| Type | Micro-OLED |
| Resolution, pixels | 2560x2560 |
| Laser Rangefinder | |
| Max. measuring range, m | 800 |
| Measurement accuracy, m | ± 1 |
| Safety class for laser equipmentaccording to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Video Recorder | |
| Video / photo resultion, pixel | 1280x960 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 64 |
| Bluetooth | |
| Wireless protocol | BLE 4.2 |
| Wireless standard | IEEE 802.15.1 |
| Frequency, Ghz | 2,4 |
| WIFI | |
| Wireless protocol | Wi-Fi |
| Wireless standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental characteristics | |
| Degree of protectionIP code (IEC60529) | IPX7 (waterproof) |
| Operating temperature range, °С | -25 – +50 |
| Connections and compatibilities | |
| Compatible mounts | Standard 30 mm rings |
| Supported application | Stream Vision 2, Stream Vision Ballistics |
| Shock resistance on the smooth-bore rifles, caliber | 12 |
| Max. recoil power on rifled weapon (Eo), Joules | 6000 |
| Weight & size | |
| Body material | Aluminum alloy |
| Dimensions, mm | 442х78х98 |
| Weight, kg | 1.2 |
