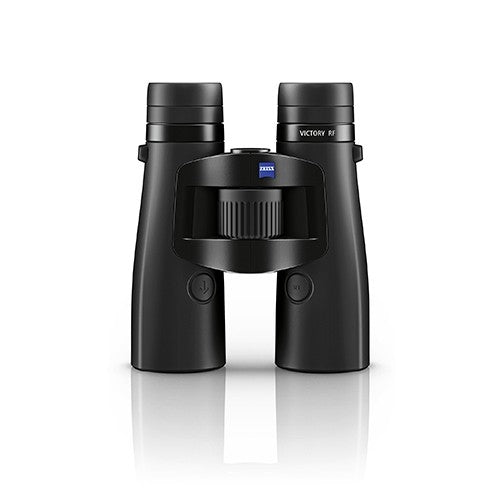

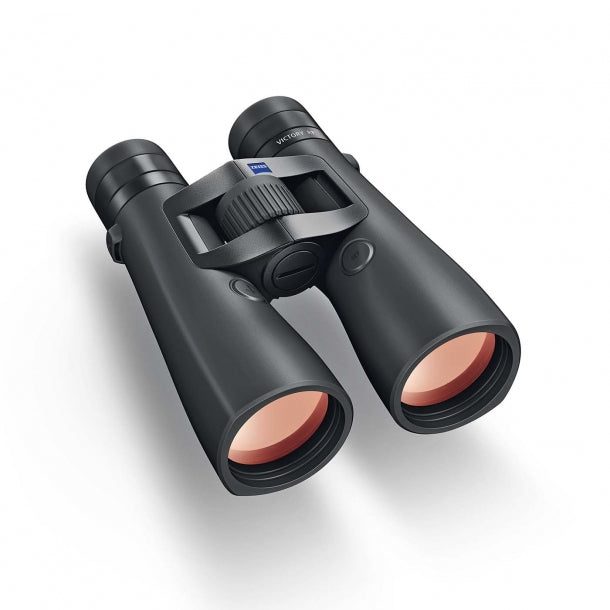

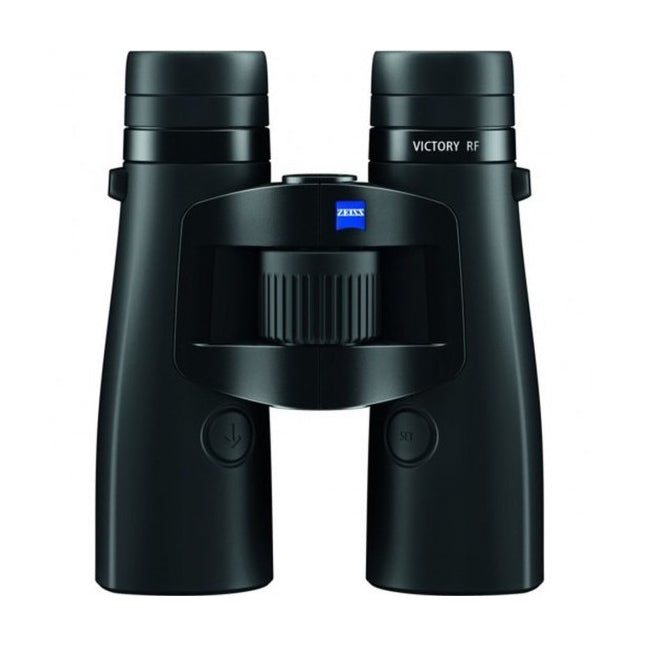

Zeiss Victory RF 10x42 Rangefinder Binoculars
Reliable, Repeatable Distance Readings in Powerful Binoculars
The Victory Rangefinder System by Zeiss is a laser rangefinder with an integrated real-time ballistics computer, all built into phenomenal binoculars. The consideration of all relevant factors and customisation with the aid of the ZEISS Hunting App ensures precisely placed shots at any distance.
The new models Victory RF 8x42 and 10x42 are primarily made for daylight applications and Victory RF 8x54 and 10x54 are suitable for twilight situations.
Product details

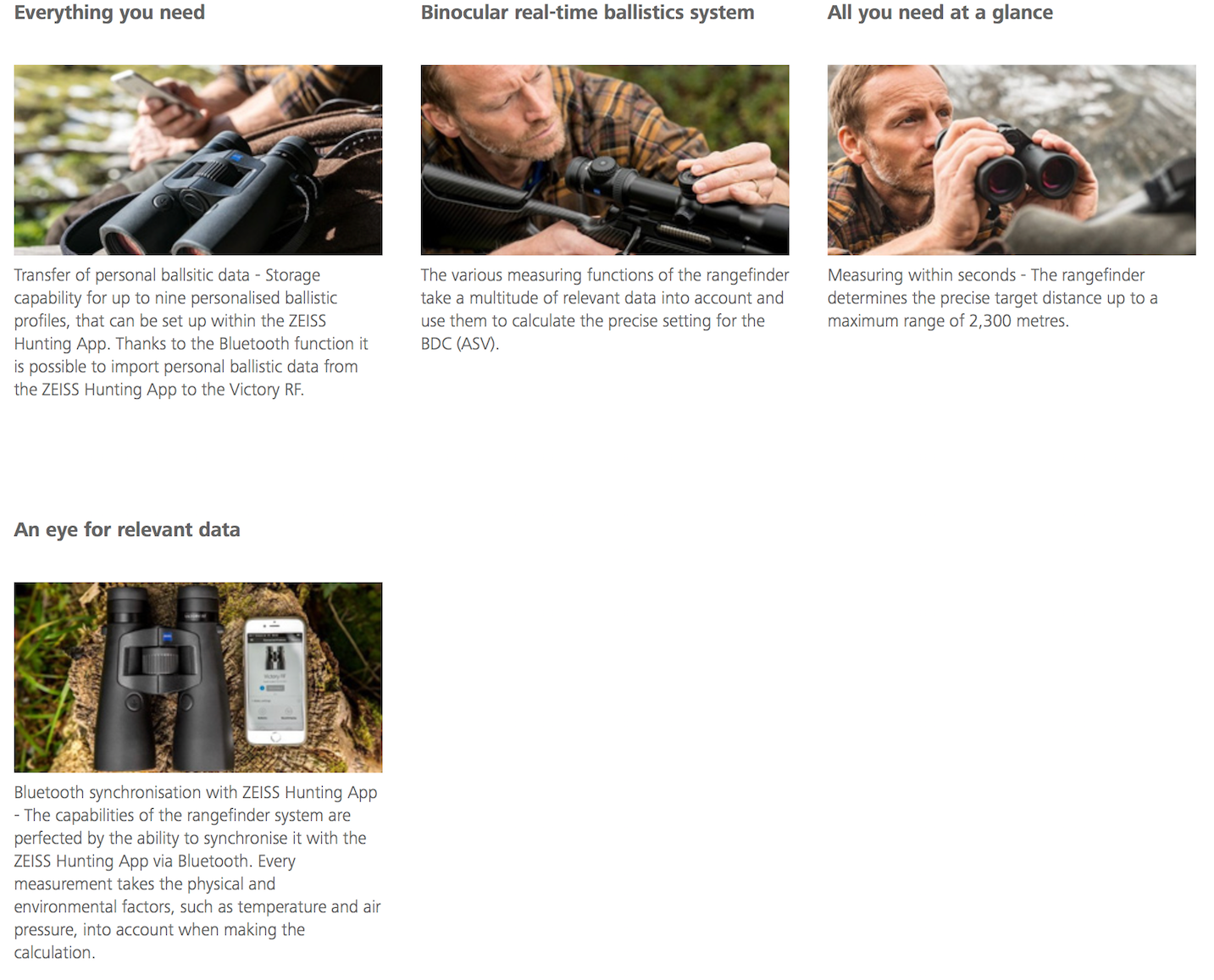

Key Features
- Measuring within seconds

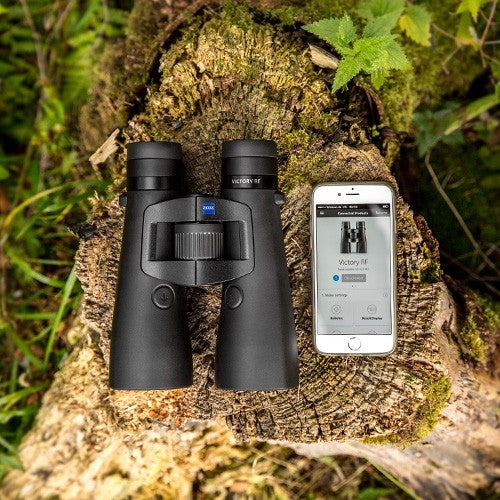

- Bluetooth synchronisation with ZEISS Hunting App
- Transfer of personal ballistic data
- Calculate precise setting for BDC (ASV)
- A clear view, whatever the weather
- ZEISS T* Coating
Product Technology
ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
Specifications
| Magnification | 10 × |
| Effective lens diameter | 42 mm |
| Exit pupil diameter | 4.2 mm |
| Twilight factor | 20.5 |
| Field of view at 1,000 m (yds) | 115 m (345 ft) |
| Subjective viewing angle | 63° Ww |
| Close focusing distance | 2.5 m (8.2 ft) |
| Diopter adjustment range | − 4.0 | + 4.0 dpt |
| Exit pupil distance | 16 mm |
| Pupil distance | 53.5 – 76 mm |
| Lens type | FL |
| Prism system | Abbe-König |
| LotuTec | Nitrogen filled | + | + |
| Water resistance | 100 mbar |
| Measuring range | 10 – 2,300 m (11 – 2,500 yds) |
| Measuring accuracy | ± 1 – 600 / ± 0.5 % > 600 m (yds) |
| Measuring duration | < 0.3 Sec |
| Laser wavelength | 905 nm |
| Laser beam divergence | 1.6 × 0.5 nm |
| Battery | 1 × 3V Type CR 2 |
| Battery life at +20°C | > 2.500 × |
| Operating temperature | − 30°C | + 63°C (− 22°F | + 145°F) |
| Length | 166 mm (6.5 ") |
| Width at an interpupillary distance of 65 mm | 130 mm (5.1 ") |
| Weight | 960 g (33.9 oz) |
