Swarovski TM35+ Thermal Add-On
*UK Users Only*

Sleek, Straight-Forward Thermal Add-On
A stunning innovation from Swarovski Optik, the TM35+ thermal device is a state-of-the-art thermal product offering function as a handheld thermal imager as well as a thermal imaging rifle scope clip-on device. A fantastic dual-purpose product that allows for the minimal kit with the highest quality.
The Swarovski TM35+ thermal boasts very intelligent features that go hand in hand with their famous rifle scopes. For instance, the TM35+ utilises their SWAROLIGHT technology which automatically switches on/off the device when in a "non-shooting" position, therefore saving battery life when you may be viewing. Additionally, the TM35+ has intelligent automatic brightness control.
Its removable RB TM35 battery allows for up to 6.5 hours of function and can be easily/quickly changed.

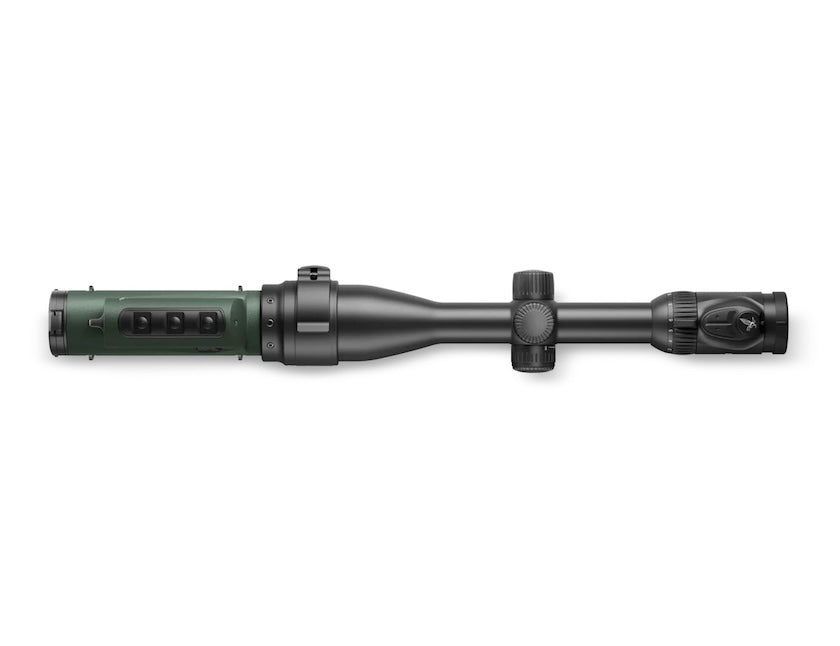

Depending on the hunting situation, detail recognition can be enhanced by switching between White Hot and Black Hot mode. The tM 35+ can be operated intuitively in darkness and is compatible with SWAROVSKI OPTIK rifle scopes from the DS, Z8i, Z6i and Z5(i). The TM35+ can be attached to these scopes via Swarovski's tMA thermal monocular adapter.
Included with this product: RB tM 35 rechargeable battery, RBC battery charger, micro-USB charging cable, field bag, winged eyecup, carrying strap, and hand strap.
- 60Hz Refresh Rate
- AMOLED Screen resolution 2560x2048
- Sensor resolution 640x512
- 12(µm) pixel size
- Weighs 495g
- 1x Optical Magnification, 2x digital
- 21.6x17.4 m/100m Field of View
Product details
Key Features
- State-of-the-art thermal imaging technology
- Energy-saving SWAROLIGHT automatic switch-on/off timer
- Switch between White Hot and Black Hot mode for detail recognition
- Winged eyecup
- Integrated objective lens cover
Product Technology
SWAROLIGHT
With an intelligent tilt sensor, the automatic turn-off/turn-on function detects whether the firearm is in a shooting position. When the firearm is brought into position, the reticle illumination is immediately activated thanks to the SWAROLIGHT function.
Specifications
| Field of view | 21.6x17.4 m/100m |
| Field of view with eye glasses (°) | 100 % |
| Exit pupil distance (4x magnification) | 21 mm |
| Optical magnification | 1x |
| Digital magnification | 2x |
| Objective lens | 35 mm/f1.0 |
| Length in mm. | 170 mm |
| Width in mm. | 54 mm |
| Height in mm. | 80 mm |
| Weight | 495 g |
| Connection thread | M44x0.75 |
| Functional temperature | -20 to +50 °C |
| Storage temperature | -30 to +70 °C |
| IP protection class | IP68 |
| Refresh rate (Hz) | 60Hz |
| Screen type | AMOLED |
| Screen resolution (pixels) | 2560x2048 |
| Sensor type | Uncooled VOx microbolometer |
| Sensor resolution (pixels) | 640x512 |
| Pixel size (µm) | 12 |
| Start up time (s) | 3 s |
| Battery | Li-lon 3000 mAh |
| Battery operating time during normal / maximum operation | 6.5 h |
You may also like
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
Fantastic unit, akin to the usual Swarovski quality. I have it on a Z8i and it is a beautiful setup.
