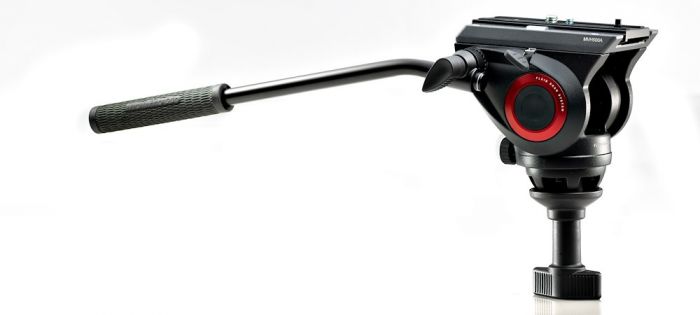

Manfrotto 500 Fluid Video Tripod Head
Finance options available
Learn moreEnsures smooth shots and fine control
Built with a wider platform for HDSLR bodies and a sliding plate which travels to balance your camera. It ensures smooth shots and fine control with up to 5kg of equipment.
The Head has professional fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth, controlled and precise. It's the most compact head in Manfrotto's successful Bridging Technology™ range, and comes with a 60mm half ball video tripod mount.

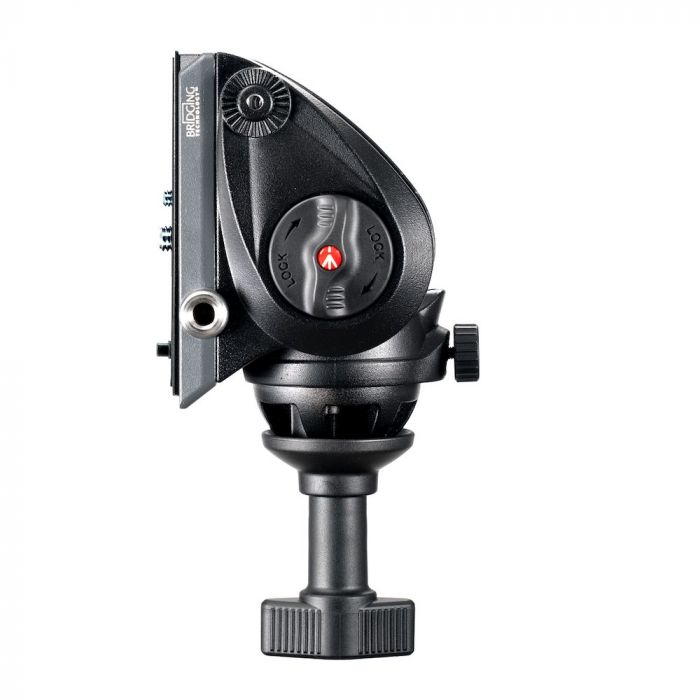

It comes with a side lock system, allowing the camera and sliding plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above.
The head has a pre-set counterbalance of 2.4kg, but is able to support equipment of up to 5kg. It has one 3/8'' Easy Link connector to allow an external monitor or other accessory equipment to be fitted.
Product details
Key Features
- Fixed Fluid Drag System on PAN and TILT movements
- Fixed Counterbalance system
- Sliding plate for the fastest camera connection and set up
- incorporated Ø60mm half ball for levelling
- Easy link for external accessories
Specifications
| Weight | 1.1 kg |
| Counterbalance System | Fixed |
| Counterbalance Weight | 2.4 kg |
| Base Diameter | 60 mm |
| Material | Aluminium |
| Bubble Spirit Level (No.) | 1 |
| Center Of Gravity | 55 mm |
| Safety Payload Weight | 5 kg |
| Powered By (Batteries) | 0 |
| Certifications | None |
| Top Attachment | 1/4″ screw, 3/8″ screw |
| Colour | Black |
| Easy Link | Yes |
| Front Tilt | -70° / +90° |
| Ball Flat | 60 Ball |
| Head Type | Video/Fluid Head |
| Maximum Working Temperature | 60 °C |
| Minimum Working Temperature | -20 °C |
| Pan Bar Included | Yes |
| Pan Drag | fluid cartridge with fixed drag |
| Panoramic Rotation | 360 ° |
| Plate Type | 500PLONG |
| Quick Release | Yes |
| Tilt Drag | fluid cartridge with fixed drag |
| Working Height | 10.5 cm |
| Accessory Compatibility | 500HLV |
