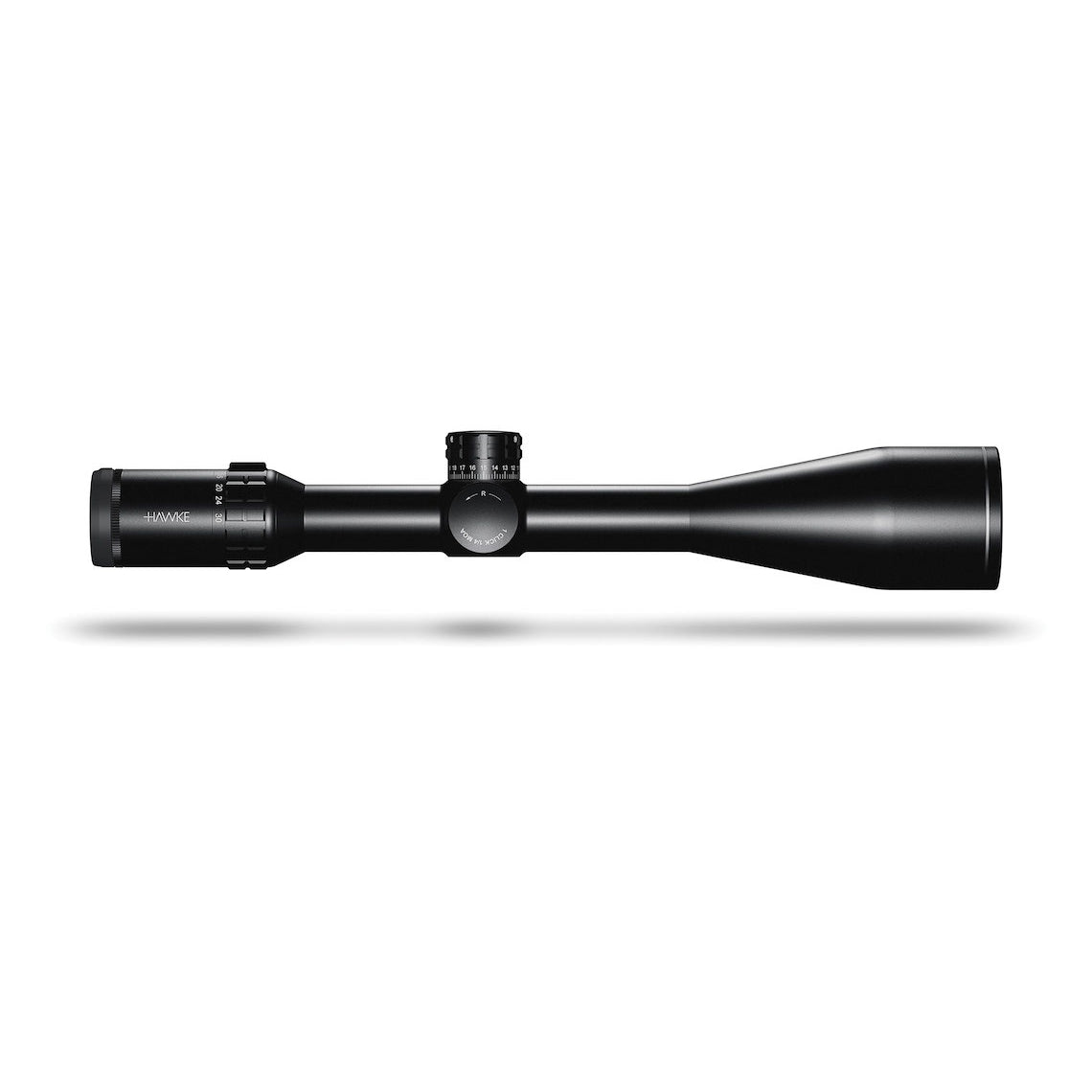

Hawke Frontier 30 SF 5-30x56 Rifle Scope
Finance options available
Learn moreHawke Frontier Scopes - flagship line
The 30mm mono-tube chassis, machined from high grade aluminium, comes with two turret styles. Zero Lock 'n' Stop turrets are resettable, lockable and feature a state of the art return to zero feature. They are exposed giving ease of access and offer a tactical design. The low-profile, capped turrets provide accurate and precise adjustments, while still retaining a compact and efficient design securely hidden beneath low-profile dust caps.

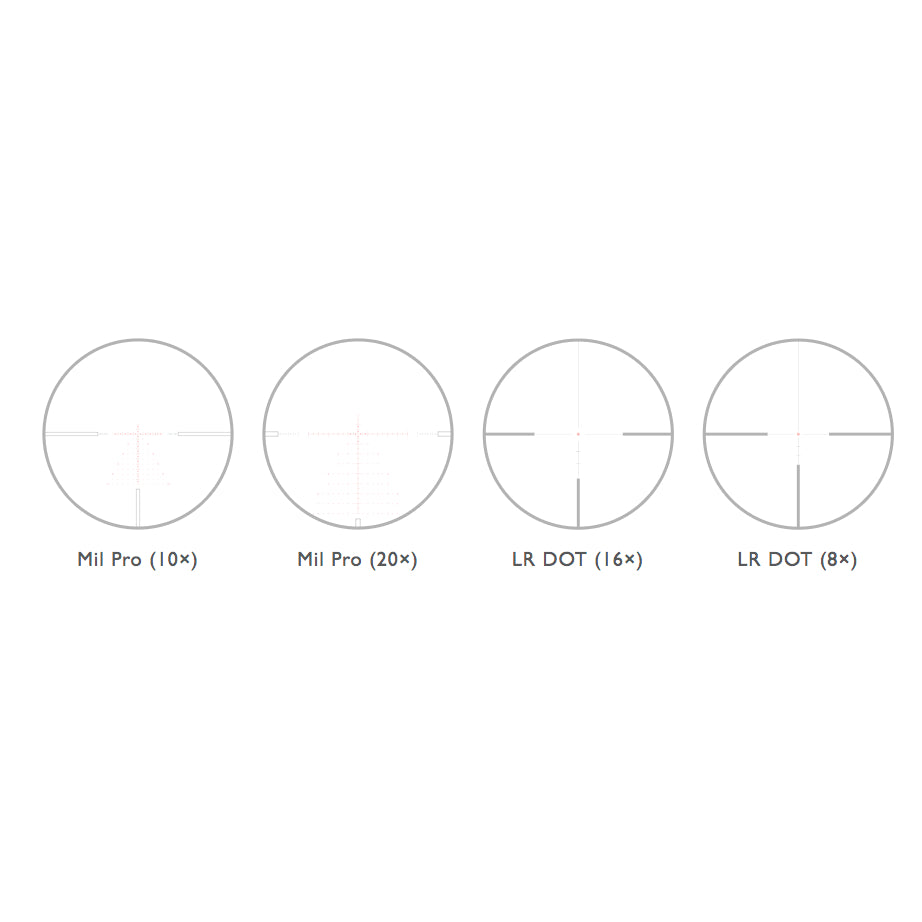

Second Focal Plane models include the all new Mil Pro reticle which uses true mil spacing at 10× on the 2.5-15×50 model and 20× on the 4-24×50 and 5-30×56 models and is designed with half mil indicators and multiple aim points. The LR Dot reticle has been designed around the ballistic profile of common hunting cartridges.
Product details
Key Features
- Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
- 30mm Mono-Tube Chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High Volume Eyebox
- 100mm Eye Relief
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 21 Layer Fully Multi-Coated Lenses
- Zoom Magnification Throw Lever (Removable)
- Fast Focus Eyebell With Lock Ring
- Supplied With Professional Metal Flip-Up Covers.
Specifications
| LR Dot (16x) | Mil Pro (20x) | |
| Scope Tube | 30mm | 30mm |
| Magnification | 5-30x | 5-30x |
| Objective Lens | 56mm | 56mm |
| Reticle | LR Dot (16x) | Mil Pro (20x) |
| Illumination | 6 Levels with Off Positions In-between - Red | 6 Levels with Off Positions In-between - Red |
| Parallax | Side Focus | Side Focus |
| Focal Plane | SFP (Second Focal Plane) | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 21 Layers | Fully Multi-Coated - 21 Layers |
| Field of View | 7.6 - 1.2m @100m | 7.6 - 1.2m @100m |
| Field of View | 4.3 - 0.7° | 4.3 - 0.7° |
| Eye Relief | 102mm | 102mm |
| PX/Focus (Error free from) | 14m - ∞ | 14m - ∞ |
| Exit Pupil | 11.2 - 1.9mm | 11.2 - 1.9mm |
| Turret Type | Zero Lock 'n' Stop | Zero Lock 'n' Stop |
| Turret Caps | N/A | N/A |
| Click Value | 1⁄ 4MOA | 1⁄ 10MRAD |
| Elevation Turret Clicks (max) | 60 MOA | 17 MRAD |
| Windage Turret Clicks (max) | 60 MOA | 17 MRAD |
| Ocular Type | Locking Fast Focus | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 401mm | 401mm |
| Weight | 724g | 724g |
