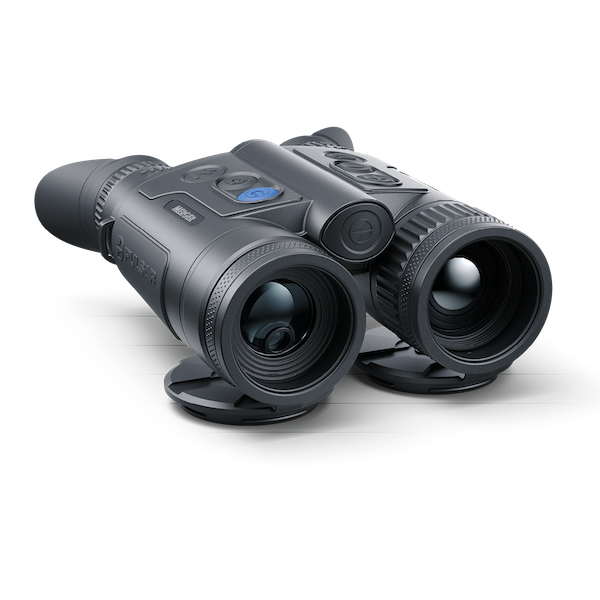

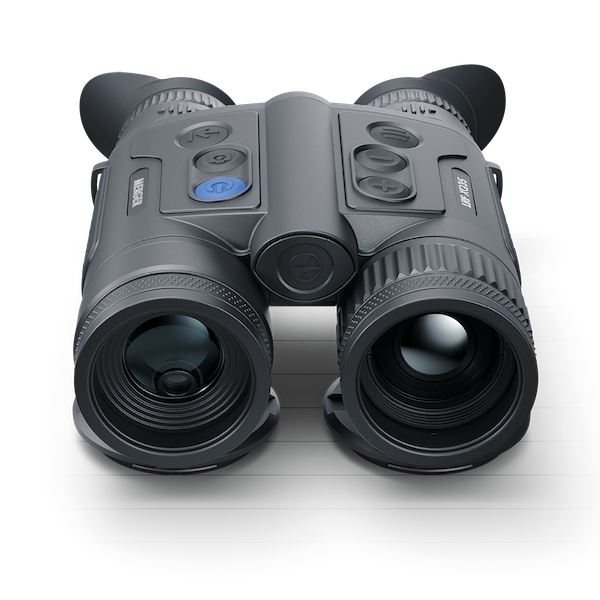

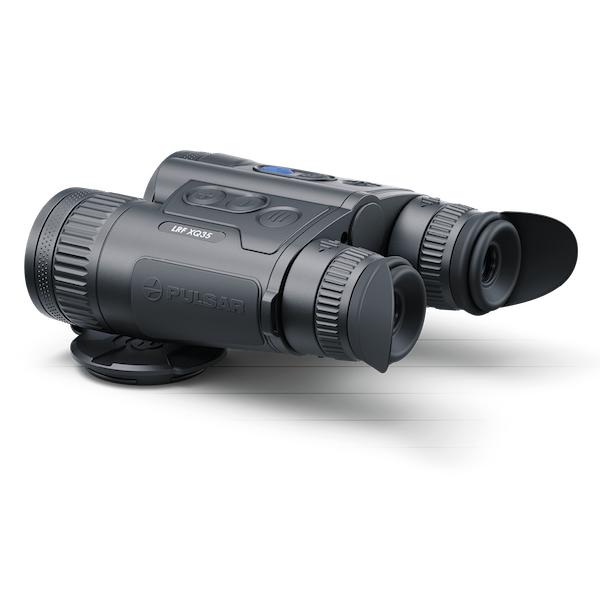

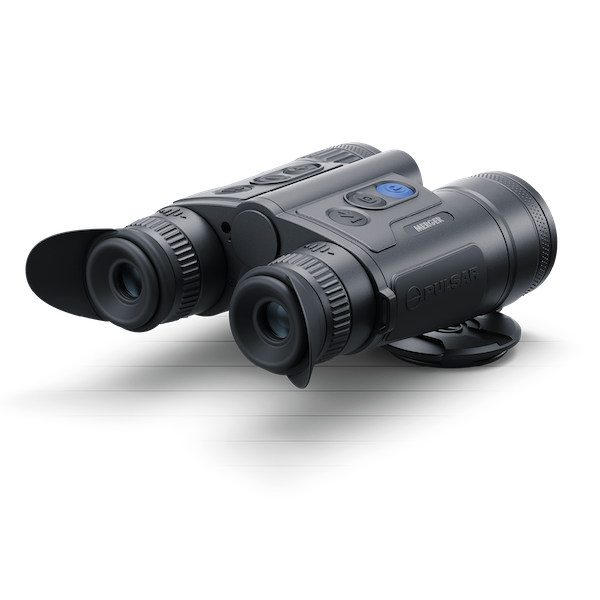

Pulsar Merger LRF XQ35 Thermal Binoculars
*UK Users Only*
Compact, Lightweight Thermal Imaging Binoculars
The Pulsar Merger LRF XQ35, a new addition to the Merger line of thermal imaging binoculars, provides astounding levels of thermal imaging detail at a range of up to 1350m in a new, more lightweight, compact design while maintaining the traditional aesthetics of a pair of standard daytime binoculars.
This device sits alongside the Pulsar Merger LRF XP50 in their impressive range of thermal imaging binoculars.
Find our Pulsar Comparison Tool here
Product details
Key Features
- lightweight & compact, classic binocular design with natural button placement
- sensitive 384x288, 17µm <25mK NETD pulsar thermal imaging sensor
- fast aperture F35/1.0 germanium lens
- detection range up to 1350m
- Laser Rangefinder measuring up to 1000m
- Up to 11-hour battery life
- 1024x768 resolution AMOLED Screen
- Stream vision 2 capabilities (for live streaming and more)
- 2.5-20x magnification range
- 8 colour palettes
Specifications
| Main | |
| Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 – 12 (x4 zoom) |
| Field of view (HxV), degrees / m@100m | 10.7х8 / 18.7x14 |
| Detection range, m | 1350 |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 17 |
| NETD, mK | <25 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 – 12 |
| Field of view (HxV), degrees / m @ 100 m | 10.7х8 / 18.7x14 |
| Interpupillary distance adjustment, mm | 62 – 74 |
| Eye relief, mm | 15 |
| Display | |
| Type | AMOLED HD |
| Resolution, pixels | 1024x768 |
| Range Performance | |
| Detection range, m | 1350 |
| Laser Rangefinder | |
| Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Max. measuring range, m | 1000 |
| Measurement accuracy, m | ± 1 |
| Video Recorder | |
| Video / photo resolution, pixel | 1024x768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory, GB | 16 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
| Operating temperature range, °С | -25 – +50 |
| Connections and Compatibilities | |
| Mount, type | 1/4" socket |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output voltage, V | 3.7 |
| Battery type | Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal) |
| Capacity, mAh | 3200 (external) + 4000 (internal) |
| Operating time on battery pack (at t=22°C), h * | 11 |
| External power supply, V | 5V, 9V (USB Type-C Power Delivery) |
| Weight & Size | |
| Body material | Magnesium alloy |
| Dimensions, mm | 181x133x68 |
| Weight, kg | 0.95 (batteries included) |
