Leica Calonox Sight SE Thermal Add-On
*UK Users Only*
Simple, Detailed & Reliable Thermal Add-On
Every shot attempt comes with responsibility. When you want to improve your accuracy and guarantee an ethically placed shot at night, the Leica Calonox Sight SE is an excellent option. Furthermore, you can achieve great repeatability with this thermal camera and thermal imaging clip-on combination.

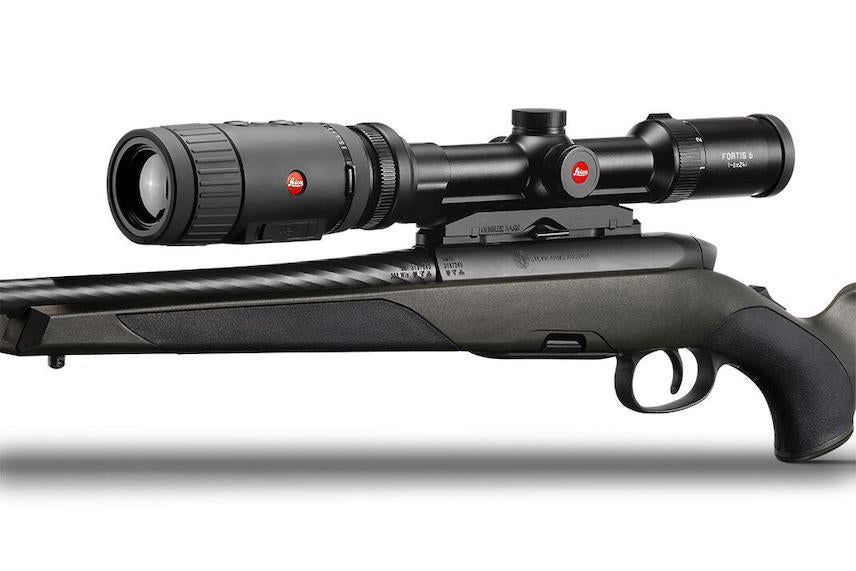

The Leica Calonox Sight SE has a 1x magnification because it is the perfect thermal imaging add-on for a riflescope. The Calonox Sight SE offers exceptional dependability and a continuously accurate, repeatable point of impact thanks to its one-piece design.
Leica’s own image processing (Leica Image Optimization - LIO™) improves the image with special algorithms, thus achieving particularly detailed color gradations, excellent contrast, and high detail resolution.
The outstanding recognition range of the Calonox Sight SE is based on a high-end vanadium oxide (VOx) sensor with 384 x 288 pixels and 17 µm pixel size with excellent temperature resolution.

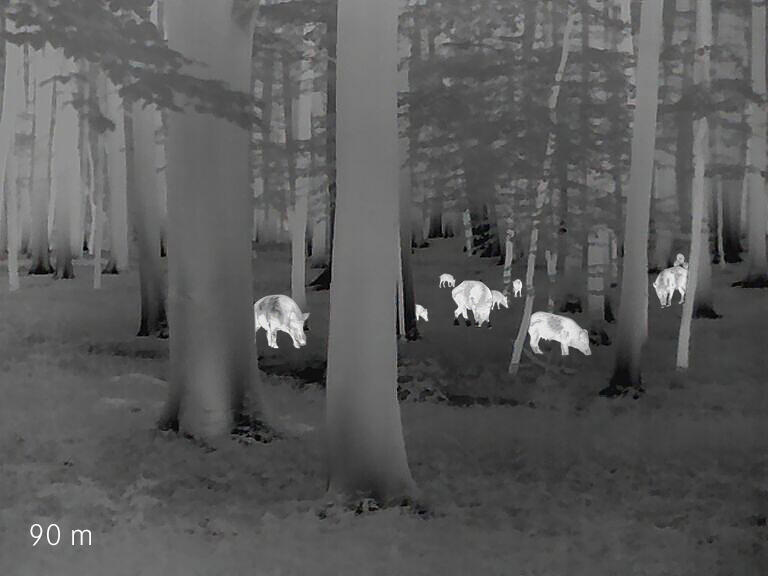

View more, safely identify game: The Leica Calonox Sight SE can detect targets up to a distance of 2,000 metres, recognise targets up to 700 metres, and precisely identify targets up to 350 metres with a defined target size of 1.7 x 0.5 metres.
Product details
Key Features
- 384x288 Sensor
- 17 Micron Pixel Pitch
- 1024x768 OLED Display
- 50hz refresh rate
- 42mm Focal Length
- FOV - 8.9 Degrees @ 100 yards
- Up to 2000m Detection Range
- Video out connection - USB-C
- Battery Life - 8-11Hr
- IP67 Rating
Specifications
| Device type | Thermal imaging device |
| Type No. | 1971 |
| Order No. | 50 504 |
| Scope of delivery | Calonox Sight SE, cordura case, charging cable, quick start guide, lens cleaning cloth, certificate |
| Sensor type | VOx |
| Sensor size | 384 x 288 pixels |
| Pixel size | 17 μm |
| Screen type | OLED |
| Screen diagonal | 0.39” |
| Screen resolution | 1024 x 768 pixels |
| Image repetition frequency | 50 Hz |
| Lens focal length | 42 mm |
| Optical basic magnification | 1x |
| Digital Zoom | no |
| Field of view | 8.9 x 6.7° (15.5 m x 11.7 m/100 m) |
| Diopter adjustment | - |
| Range/Resolution (calculated for image subject 1.7 m x 0.5 m (66.9 inch x 20.0 inch)) | |
| Detection range/Resolution | 2000 m/2 pixels(2187 yrd/2 pixels) |
| Recognition range/Resolution | 700 m/6 pixels (766 yrd/6 pixels) |
| Identification range/Resolution | 350 m/12 pixels (383 yrd/12 pixels) |
| Adjustment reticle correction | 1.2 cm/50 m (0.43 inch/50 yrd) 2.4 cm/100 m (0.86 inch/100 yrd) |
| Video output | PAL |
| Video recording | no |
| Video/Picture resolution | - |
| Cable socket | USB-C |
| Wireless connection | no |
| Internal memory | - |
| Protection type | IPX4 |
| Operating temperature | -20 to +50 °C (-4°F to 122°F) |
| Operating temperature (charge battery) | +10 to +30 °C (50°F to 86°F) |
| Battery life | approx. 8 - 11 h |
| Accessory thread | M52 x 0.75 |
| Tripod thread | A ¼ DIN 4503 (¼”), M5 standard thread |
| Dimensions (WxH) | 165 x 65 mm (6.5 x 2.6 inch) |
| Weight (with battery) | 685 g (24.2 oz) |
